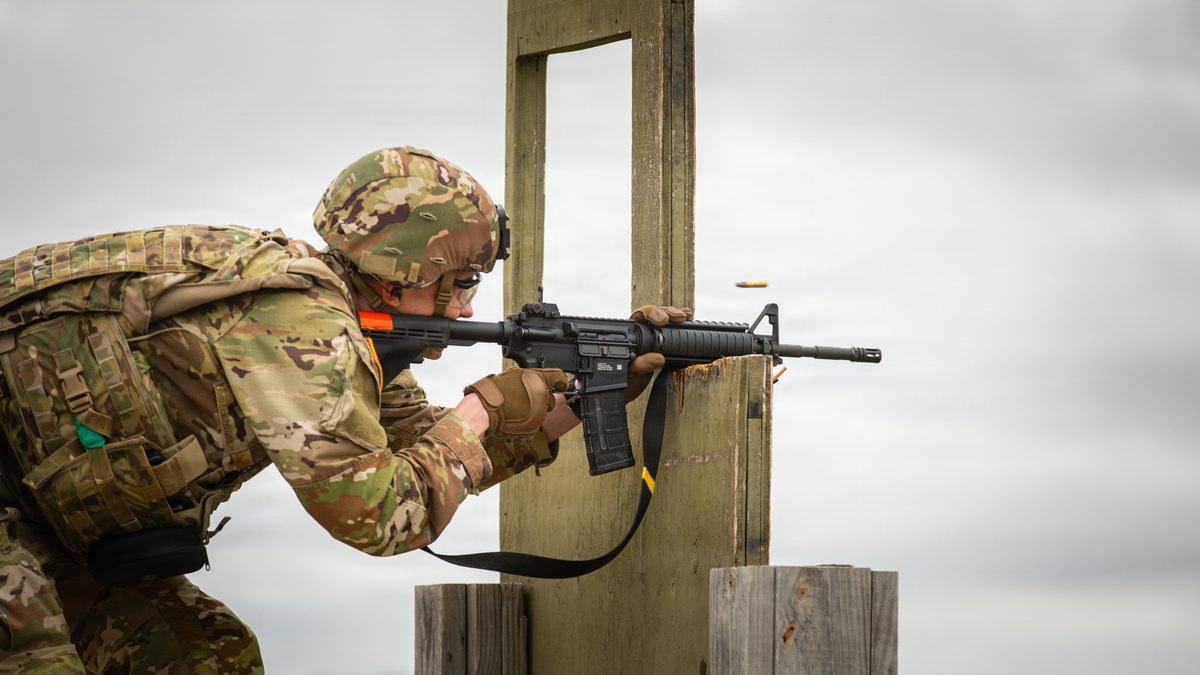

Photo: Sgt. Max Elliott / U.S. Army, 316th Sustainment Command (Expeditionary). M4 carbine live-fire qualification, Fort Hood, Texas, 18 April 2026. DVIDS / Public Domain (VIRIN 260418-A-ZT835-8121). The appearance of U.S. Department of Defense visual information does not imply or constitute DoD endorsement.

5.56x45mm NATO: The Threat Calculus That Built It, and the Verdict Now

Summary

The 5.56x45mm cartridge was not an accident of engineering. It was the answer to a specific question asked by analysts in the early 1950s: what should an infantry rifle actually be able to do on a real battlefield, as opposed to a rifle range? The answer reshaped Western small arms for seventy years and produced two NATO standards, the United States M193 of 1964 and the Belgian SS109 ratified as STANAG 4172 in 1980.

This article traces how the cartridge was created and the threat analysis that justified it. It then re-runs that same analysis against the 2026 battlefield, where body armour, extended engagement ranges and the United States Next Generation Squad Weapon programme have put the small calibre back on trial. The verdict is more contested than either camp admits, and the most disruptive variable is one no rifle cartridge can solve.

Part I: The problem the rifle was asked to solve

After the Second World War the United States Army held a comfortable conviction. The infantryman was a rifleman, the rifle was a precision instrument, and the right cartridge was a full power .30 calibre round able to kill at six hundred yards and beyond. That conviction was about to collide with data.

In 1948 the Army stood up a civilian think tank, the Operations Research Office (ORO), run under contract by Johns Hopkins University. When the Korean War broke out, the ORO turned its statistical methods on the infantry. One early task, Project ALCLAD, set out to design better body armour. Its head, Norman A. Hitchman, reasoned that you cannot armour a soldier until you know where and how he is being wounded. The team fed roughly three million casualty reports from both World Wars into its analysis, alongside fresh field data gathered in Korea.

The findings were heretical. Wounds were not distributed where marksmanship theory predicted. The chance of being hit by a rifle bullet was found to be almost as random as the chance of being hit by a fragment from a high explosive shell. Exposure and luck mattered more than the firer's skill. Army Ordnance, in the person of Colonel Rene Studler, distrusted the ORO civilians and commissioned its own counter study from the Ballistics Research Laboratory (BRL) at Aberdeen Proving Ground. That study, run by Donald Hall and published in March 1952, did not rescue the big cartridge. It reached the opposite conclusion: a smaller calibre could match or exceed the wounding effect of a larger bore at realistic ranges, and the soldier could carry far more of it for the same weight.

In June 1952 Hitchman published the document that became the intellectual foundation of the assault rifle cartridge, "Operational Requirements for an Infantry Hand Weapon" (ORO-T-160). Three conclusions did the damage. First, the overwhelming majority of rifle combat happened inside three hundred yards. Second, hit effectiveness with the M1 Garand was satisfactory only to about a hundred yards and fell away sharply beyond it. Third, because hits at range were near random, a weapon that put a controllable pattern of rounds into a three hundred yard zone would beat a weapon firing precise single shots that mostly missed. Hitchman calculated that a small calibre, low recoil round fired in a controlled burst, or salvo, could roughly double the hit probability at three hundred yards over a single aimed shot from the M1.

Hit effectiveness with the M1 rifle was satisfactory only to about a hundred yards and declined to low order by three hundred, the practical limit of battlefield rifle engagement. Beyond that, being struck was found to be nearly as random as being hit by shell fragments. After N. A. Hitchman, Operational Requirements for an Infantry Hand Weapon (ORO-T-160), June 1952

This was the threat analysis in its purest form. The enemy was massed Soviet and Soviet equipped infantry. The decisive zone was close, chaotic and short. The currency of victory was not the perfect shot at six hundred metres but volume of accurate fire at close range, multiplied by how much ammunition a soldier could carry into the fight. A lighter, smaller, faster cartridge served all three. The concept earned an enduring name: small calibre, high velocity, or SCHV.

Part II: From theory to hardware, SALVO to the AR-15

Hitchman's salvo idea spawned a sprawling research effort, Project SALVO, which chased everything from flechette darts to multi ball cartridges through the 1950s. The lasting product was simpler. Fairchild's ArmaLite division, with the designer Eugene Stoner, scaled a rifle around a commercial varmint cartridge, the .222 Remington, stretched to meet a military penetration requirement. The result was the .223 Remington and the AR-15 rifle.

The terminal behaviour of the first service load, the 55 grain M193, mattered as much as its ballistics. Leaving a twenty inch barrel at roughly 3,250 feet per second, the thin jacketed bullet stayed point forward in tissue for about twelve centimetres, then yawed, flattened and fractured at its cannelure. The fragments raised a wound out of all proportion to the calibre. That effect was velocity dependent, which is why early debates over barrel length and rifling twist were not pedantry. They governed whether the round still fragmented at range. The original AR-15 used a 1 in 14 inch twist, soon tightened to 1 in 12 to stabilise the bullet in arctic cold.

The United States adopted the M16 and its M193 cartridge in 1964 and rushed it to Vietnam, where close jungle fighting was exactly the short range, high tempo environment the Hitchman analysis had described. The early fielding was scarred by a now infamous reliability scandal, traced largely to a propellant change and a lack of cleaning kits rather than the cartridge itself. Once corrected, the system delivered what the 1952 studies had promised: a light, controllable, high capacity weapon for the close fight.

Part III: The second standard, SS109 and STANAG 4172

The M193 was an American round in an alliance that needed a common one. Through the 1970s NATO ran a second cartridge competition, and the threat had shifted the requirement. The new priority was penetration. A standard 5.56mm ball had to defeat a steel helmet at extended range and punch through specified mild steel plate, partly to keep pace with the better protected Warsaw Pact soldier and partly to satisfy interoperability with squad automatic weapons firing to longer range.

Belgium's Fabrique Nationale answered with the SS109. Its projectile carried a dual core, a hardened steel penetrator forward of a lead rear, at 62 grains. To stabilise the longer, heavier bullet and its even longer L110 tracer partner, the barrel twist tightened again, to 1 in 9 for the ball and 1 in 7 for the tracer. There was a political dividend too: several European states, led by Sweden, favoured the faster twist partly because a more stable bullet was expected to tumble less and so was seen as causing less severe wounds. In October 1980 NATO ratified the 5.56x45mm with the FN SS109 design as STANAG 4172. In United States service the SS109 became the M855, recognisable by its green tip, paired with the M856 tracer and, in time, the M16A2 rifle of the mid 1980s with its own 1 in 7 twist.

Figures are nominal open-source values for comparison and vary by barrel length and lot. EPR: Enhanced Performance Round.

Part IV: The original threat model in one view

Strip the history back and the cartridge was optimised against a coherent set of assumptions. They are worth stating plainly, because the modern argument is really an argument about whether they still hold.

Part V: Re-testing the threats on the 2026 battlefield

Take each assumption and hold it against the present. Some have aged well. One has not, and it is the one driving every modern programme.

1. Body armour: the assumption that broke

The 1980 penetrator was sized for a steel helmet, not a ceramic plate. Today a near peer infantryman can be wearing hard armour rated to defeat rifle rounds across the chest and back. In 2017 United States Army testimony stated plainly that 5.56mm, including the improved M855A1, could no longer be relied on to defeat the body armour that modernised adversaries were beginning to field, and that intelligence pointed to ceramic plates able to stop the round at normal combat distances. This is the genuine break with the past. The original analysis never had to defeat a chest plate, because the enemy of 1952 was not wearing one.

2. Overmatch and engagement range

The second pressure came from Afghanistan, where dismounted patrols were repeatedly engaged from beyond five hundred metres by machine guns and marksman rifles, ranges at which 5.56mm sheds the velocity that drives both penetration and its fragmentation wounding. The conclusion that combat lives inside three hundred metres held for the close country of Korea and Vietnam and for most urban fighting. It did not hold in open valleys against an enemy who chose the range. From that experience the United States built a requirement for reliable effect out to six hundred metres and beyond.

3. The answer the United States chose: 6.8mm and the M7

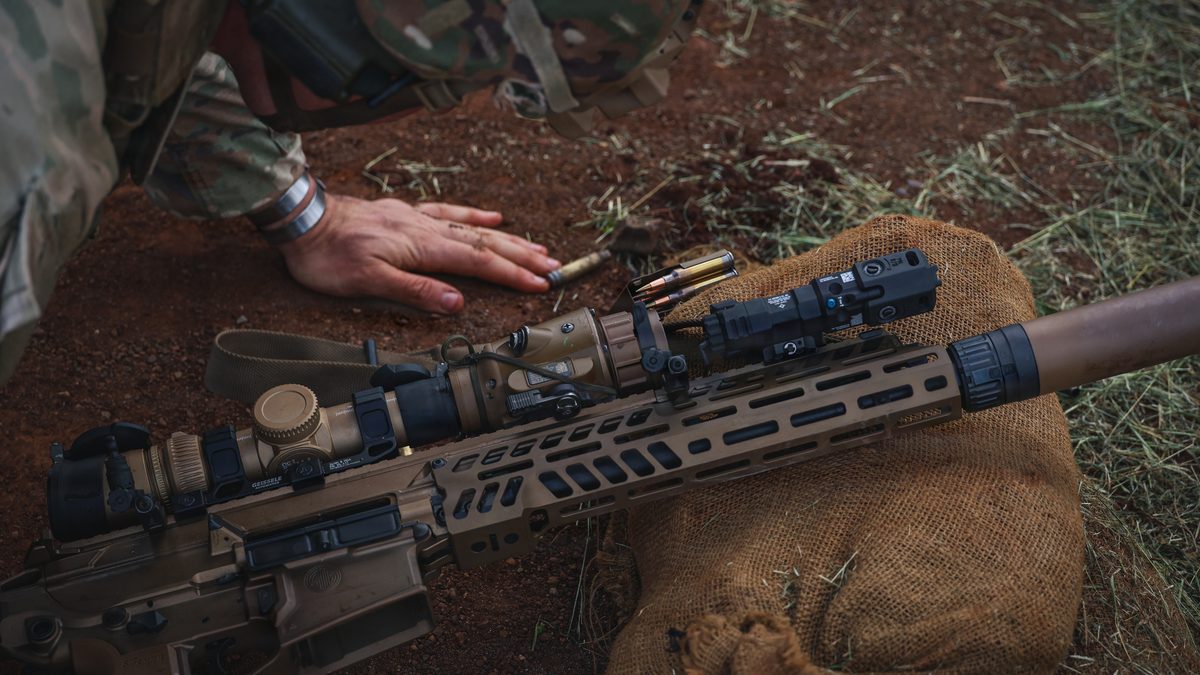

That requirement became the Next Generation Squad Weapon (NGSW) programme. SIG Sauer won it with the M7 rifle and the M250 automatic rifle, both chambered for a new 6.8x51mm cartridge built on a hybrid case, a steel head joined to a brass body by an aluminium locking washer, that runs at chamber pressures well above the 5.56mm ceiling, around 80,000 pounds per square inch (psi) against roughly 62,000 for 5.56mm NATO, to push a heavier bullet fast enough to defeat modern plate at range. That construction buys the pressure safely, at the cost of production complexity, expense, and a little extra weight over a conventional brass 5.56mm round. The Army granted the system its full type classification in May 2025, having begun fielding to the 101st Airborne Division in March 2024. A carbine variant, the XM8, with a ten inch barrel and an unloaded weight near 7.3 pounds, began reaching the close combat force in 2026, trading the M7's reach for handier close quarter dimensions while keeping the 6.8mm chambering.

Crucially, the United States is not replacing 5.56mm wholesale. The M7 and M250 are going to close combat formations, the infantry, Rangers and selected special operations units, not to the entire force. The bulk of the military, and the vast existing M4 and M16 fleet, stays on 5.56mm. The programme is best read as a targeted overmatch tool for the soldiers most likely to meet an armoured near peer at range, not a verdict that the small calibre has failed everywhere.

4. The small calibre fought back: M855A1

The 5.56mm of 2026 is not the round of 1980. The M855A1 Enhanced Performance Round, fielded from 2010, replaced the part jacketed green tip with a three part projectile: an exposed hardened steel penetrator, a copper slug and a reverse drawn copper jacket. That construction punches through three eighths of an inch of mild steel out to around 400 metres, against roughly 160 yards for the old M855, cuts through soft body armour at long range, and delivers a more consistent, yaw independent terminal effect with the lead core removed. What it was never designed to do is defeat hard ceramic rifle plates, which is exactly the gap the 6.8mm was built to fill. The mechanism differs by round: the M193 and M855 depend on a velocity driven yaw and fragmentation that fades as the bullet slows, the M855A1 gives a more consistent, yaw independent effect through its penetrator and copper slug, and the 6.8mm leans on mass and retained energy to penetrate and incapacitate even when the bullet stays intact. The lesson is that the cartridge kept evolving inside its envelope, and remains formidable against unarmoured and soft armoured targets and light barriers.

5. The Hitchman penalties came back to bite the replacement

Here the 1952 logic reasserts itself against the new round. The M7 weighs noticeably more than the M4 it supplements, around 8.2 pounds unloaded before a suppressor and optic, against roughly 6.5 pounds for the M4A1. Its standard magazine holds twenty rounds against the M4's thirty, so a soldier carrying seven magazines drops from about two hundred and ten rounds to about one hundred and forty. Heavier rifle, heavier ammunition, fewer rounds. The rounds themselves carry the point: a loaded 5.56mm cartridge weighs around twelve grams against roughly twenty for the 6.8mm, before any lightweight case saving, so the heavier calibre costs both carried rounds and carried kilograms. Serving soldiers and at least one widely reported officer critique have raised precisely the trade Hitchman quantified seventy years ago: volume of fire and the weight a soldier can carry are themselves combat factors. SIG Sauer has since trimmed roughly a pound from the rifle in response. The Army's counter argument is that a round which defeats armour and stops a target with fewer hits changes the maths in its favour.

Nominal open-source values; barrier and armour results vary with barrel length, lot and test protocol.

Representative open-source figures; muzzle energy is computed from the listed mass and velocity. Both calibres' terminal and barrier performance is highly sensitive to barrel length, so the XM8's shorter barrel trades some reach for close quarter handling. Treat all values as comparative.

6. Interoperability: the alliance still votes 5.56mm

NATO is a logistics alliance before it is a tactical one, and a shared rifle cartridge is one of its oldest practical bonds. The SS109 has been that bond since 1980. For the first time since then, front line United States infantry will carry a calibre that no other NATO member currently issues, and no ally has announced a move to 6.8x51mm. The United Kingdom is a useful contrast: its Project Grayburn, to replace the SA80A3, is running a deliberate competition that explicitly weights NATO interoperability and supply security, and it remains heavily weighted toward 5.56mm as the baseline criterion rather than committed to a larger calibre. Britain prioritised alignment and certainty; America prioritised speed and overmatch. The point for this analysis is that the 1980 interoperability assumption has not weakened. It has arguably grown stronger as a counterweight to a unilateral calibre change.

7. The British alternative: keep the calibre, change the cartridge

Britain's response to the same threats is the clearest real-world version of the "improve the round, not the calibre" school, and it rests on sovereign production. The United Kingdom makes its small arms ammunition at BAE Systems' Radway Green plant in Cheshire, the design and manufacturing centre of excellence that has supplied almost all of the British Army's requirements since 1940 and can turn out up to a million rounds a day. That capability sits under a long term industrial agreement, the Munitions Acquisition, the Supply Solution (MASS), first let in 2008 and succeeded in 2020 by a new fifteen year contract worth about GBP 2.4 billion that sustains some four thousand jobs.

The product line shows the strategy. Alongside the NATO standard L15 Ball, BAE's SS109 equivalent, sits the L31 Enhanced Performance Ball, a lead free round the company says delivers improved penetration, range and lethality while remaining compatible with every 5.56mm NATO weapon. That is the British counterpart to the M855A1: a better bullet inside the existing calibre and the existing magazines, with no new rifle to buy. More striking is what BAE calls its Next Generation Lightweight Case, a 5.56mm round it states is up to a quarter lighter by using high strength, lower density case materials. If it performs as claimed, it attacks the Hitchman penalty head on, handing the soldier back the ammunition load that a heavier calibre would take away, all without leaving the NATO standard. These are manufacturer figures pending independent confirmation, but the intent is plain: hold the calibre, modernise the cartridge, and keep the supply chain at home.

Source: BAE Systems product literature; performance and weight figures are manufacturer claims pending independent confirmation.

8. The variable the cartridge cannot answer: drones

The most important small arms lesson from Ukraine is unsettling for the whole debate. The decisive change to infantry lethality has not been the rifle calibre. It has been the first person view (FPV) drone and the wider family of uncrewed systems, which now account for a large share of casualties and have created near continuous killing zones many kilometres deep. Reporting from the front describes small arms as steadily less central to the close fight, their newest role being to swat drones out of the air at a few dozen metres, with dedicated counter drone loads issued in both 5.56x45mm and 5.45x39mm and whole sections retrained to put fire onto small aircraft, a mission the 1952 analysts never imagined. Most Ukrainian units, meanwhile, have converged on NATO standard 5.56mm weapons. The honest reading is that arguing 5.56mm against 6.8mm risks optimising the very tool that is losing relative importance, while the budget that decides battles is migrating to uncrewed systems.

Verdict: does 5.56mm still win?

It depends entirely on which fight you mean, and that is the fair answer rather than a hedge.

For the job the cartridge was actually designed to do, arming the mass of the force for close and mid range combat at a weight a soldier can carry and a volume of fire that suppresses, the Hitchman calculus still holds and 5.56mm still wins. Improved by rounds like the United States M855A1 and Britain's lead free L31 Enhanced Performance ball, and standardised across more than thirty nations, it remains the rational default, which is why NATO keeps it and why even the United States retains it for most of the force.

For the narrow problem that 6.8mm was purpose built to solve, defeating a modern armoured near peer at six hundred metres and beyond, 5.56mm loses, and it loses for a reason the 1952 analysts never had to confront. That is a real defeat, not a marketing claim, and it is why the M7 exists. But it is a defeat in a specific corner of the threat space, paid for in weight, ammunition load and alliance interoperability.

And hanging over both: the cartridge may be the wrong argument. If the FPV drone is the round that now decides the close fight, the 5.56mm versus 6.8mm contest is a quarrel about the second most important weapon on the battlefield. The likely future is not one cartridge but a divided one, 5.56mm for the many and 6.8mm for the few who will close with armoured infantry, with the real lethality budget moving to machines that fly.

The harder test: the NATO logistics challenge

There is a deeper test than terminal performance, and it is the one the small calibre was really meant to pass. In an alliance, a cartridge does not only have to wound or penetrate. It has to simplify the supply chain, ideally by letting one round and one magazine arm as much of the section as possible. Judged that way the 5.56mm record is more awkward, and Britain's own kit tells the story plainly.

The British Small Arms for the 1980s programme, the SA80, was conceived in 1969 as a family rather than a rifle. The intent was for one small calibre cartridge and one magazine to replace the 7.62mm L1A1 self loading rifle (SLR), the Sterling submachine gun, the Bren derived L4 light machine gun, and even the 7.62mm L7A2 general purpose machine gun (GPMG) at section level. Two members of the family carried the load: the L85 Individual Weapon, the rifle, and the L86 Light Support Weapon (LSW), essentially the same weapon with a heavier, longer barrel and a bipod, firing the same round from the same magazine. After the 1976 NATO agreement to adopt a second standard cartridge, the British 4.85mm was dropped for the Belgian SS109, and the SA80 entered service in 1985. On paper, the section's firepower now ran on a single cartridge.

It did not hold. The magazine fed LSW was never a true support weapon. With a thirty round box and no quick change barrel, it overheated after a few magazines of sustained fire and could not lay down the suppression a belt fed gun provides. Far from replacing the GPMG, it was overtaken by one: the section's automatic role passed to the belt fed 5.56mm FN Minimi (the L108 and L110), while the elderly 7.62mm GPMG refused to leave, reissued at section level in Afghanistan for the range and weight of fire the 5.56mm weapons could not match. The LSW slid into a marksman role, then lost that too, to the 7.62mm L129A1 Sharpshooter adopted in 2010. By April 2019 both the L86 LSW and the 5.56mm Minimi had been withdrawn from British service. The magazine fed support weapon, it turned out, was never a good idea.

Sniping was never even a contest. The precision and long range job stayed with 7.62mm and then moved up to the 8.59mm (.338 Lapua Magnum) L115. So the modern British rifle section, far from running on one round, juggles three: 5.56mm in the rifle, 7.62mm in the GPMG and the Sharpshooter, and .338 in the sniper rifle, with the United States now adding a fourth, 6.8mm, for its close combat units. The cartridge that was sold partly as a logistic simplifier presided over an inventory that grew.

Which raises the real question, and an old one. What if a single cartridge could do all three jobs at once: the rifle, the machine gun and the marksman? Britain very nearly built it. The .280 (7x43mm) of the late 1940s, carried by the EM-2 rifle adopted in 1951, was a genuine general purpose intermediate round, and NATO rejected it in the early 1950s in favour of the American 7.62mm. The Americans called the .280 underpowered; the British called the 7.62mm too violent to control on automatic, and events sided with the British, which is how the alliance arrived at 5.56mm a decade later. The idea never died. The United States 6.8mm bet revives part of it, putting the M7 rifle and the belt fed M250 automatic rifle on one cartridge and reuniting the rifleman and the gunner that 5.56mm split apart. A true three ply round, one that also retired the separate 7.62mm and .338 precision natures, would be the logistic prize NATO has chased and dropped since the EM-2.

Data gaps and confidence

Several figures here are nominal open-source values and vary with barrel length, propellant lot and test protocol; muzzle velocities, penetration distances and weights should be treated as comparative rather than absolute, with typical open-source spreads of five to ten percent either way by barrel length, lot and proof protocol. Classified threat assessments of specific adversary body armour, and the detailed terminal ballistics of the 6.8x51mm common cartridge, are not in the public domain, so the armour overmatch case rests on official testimony and manufacturer data rather than independent test results. NGSW fielding numbers and the eventual split between 5.56mm and 6.8mm formations remain in flux. The single general purpose cartridge is a policy argument rather than a fielded reality: even the 6.8mm reunites only the rifle and the machine gun, while the 7.62mm and .338 precision natures stay separate, so a one cartridge section remains notional. Confidence is high on the documentary history and the direction of travel, and moderate on precise current performance comparisons.
